Description
The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent “dishing” and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
- Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear.
- Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.
- Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments.
- All sizes meet Gates V80™ system matching tolerances.
- Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.
-

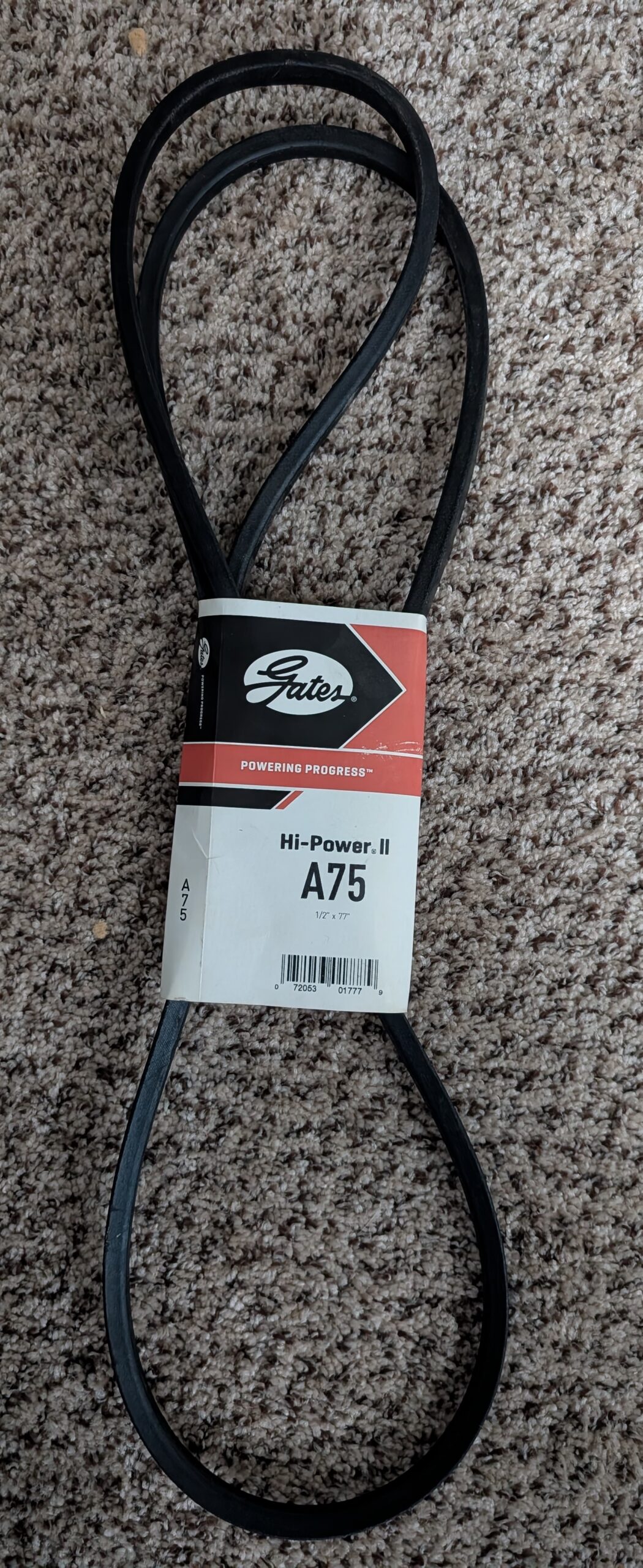

Part # A75 Product # 90022075 Description A75 HI-POWER II BELT UPC 072053202403 Cross Section A Inside Circumference (in) 75 Inside Circumference (mm) 1905 Effective Length (in) 76.86 Effective Length (mm) 1952 Notched false Outside Circumference (in) 77 Outside Circumference (mm) 1956 Number of Ribs 1 Section A Top Width (in) 0.5 Top Width (mm) 13 Angle. 39 Thickness (in) 0.35 Thickness (mm) 9 - Application
Markets/Applications Suitable for all industrial applications, including v-flat drives. - Construction
Color Black Construction Banded Material Belt Material is SBR. Cord Material is Polyester - Notes
Recommended For Multi-Duty® Sheaves Belt Notes Gates Hi-Power® belts are available in A, B, C, D and E cross sections. EQUIPPED FOR YOUR OPERATING ENVIRONMENT.
Featuring a composite, multi-purpose construction, Gates® Hi-Power™ II Belts resist oil, heat, ozone, sunlight, weather, and aging. We’ve even engineered the EPDM belt material to combat self-igniting, meaning your belt won’t catch fire from heat build-up, even with severe slippage.
Features and Benefits
- Flex-Bonded Cords are strongly bound to the body of the belt, resulting in equal load distribution and absorption of bending stress without cord deterioration.
- Gates® Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life.
- The Flex-Weave™ Cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt, and heat.
- Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX.
- Belt Edge is machined for even sheave groove contact, resulting in smoother running and less slip and wear.
- Match system: All sizes meet Gates UNISET tolerances, they can be installed without matching.
- Meets RMA oil and heat resistant standards and static conductivity requirements.
- High-quality rubber compound protects the belt against heat, ozone and sunlight.
- The belt will not catch fire from heat buildup, even with severe slippage.
- Long belt life reducing replacement and maintenance costs.
- Temperature Range: -30°C to +60°C (-22°F to +140°F).
- Excellent performance/cost ratio.
- REACH and RoHS 2 compliant.
- Reliability and efficiency.
LESS STRESS. MORE POWER.
Gates® Flex-Weave™ oil and heat resistant cover is designed with built-in static connectivity to protect your belt core from the toughest operating environments. The proprietary, woven Flex-Weave™ fabric increases the angle facing the direction of pull, developing even less stress for a given amount of bending.
